BBG-MTR
The BBG-MTR displays analog synchro or digital serial signals on a dimmable bright LED screen, with user-configurable scaling. The digital display has one (1) Synchro Input channel. It is designed to digitally display an analog synchro or serial input channel. Unit(s) can be factory configured to display other application specific signals. Custom serial input channel and serial output channels are available upon request.

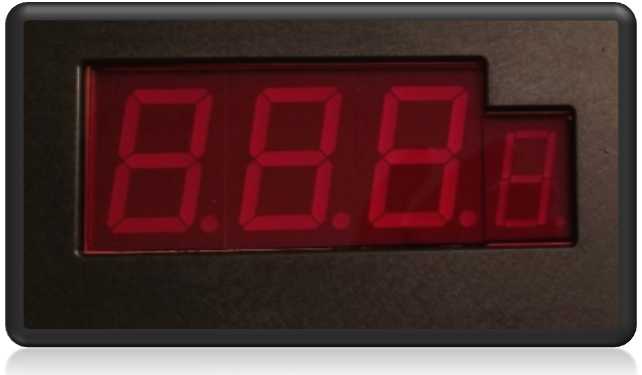

The BBG-MTR receives an analog synchro or digital serial signal and displays the information digitally on an LED display. Designed for optimal readability in all lighting conditions, the display includes three 1.5-inch seven-segment digits and one 1-inch seven-segment digit. The red digits minimize the impact on night vision. The input scales to display Heading, Roll, Pitch, or Speed across multiple ranges, and users can configure it via switch 1 in combination with factory options. The panel-mounted potentiometer allows users to adjust the display brightness.
