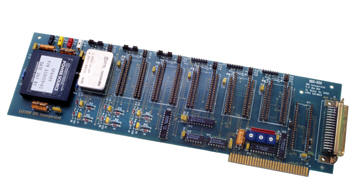

BBG-520 Six Channel Digital-to-Synchro Converter Card

The BBG-520 is a full-size ISAbus card which accommodates up to six channels of Synchro or Resolver output using industry standard components. Outputs are programmable Synchro or Resolver and can be combined with external transformers and amplifiers to supply any desired amplitude and frequency.

The BBG-520 provides a status register and 12 bits of external I/O. Software drivers allow easy integration into a PC compatible computer.

•   ISAbus Compatible
•   1 TO 6 Synchro/Resolver Output
•   Jumper Configurable for Synchro or Resolver Output
•   Compatible with SBA Series for High Power Output
•   Up to 2VA Output Without Using SBA
