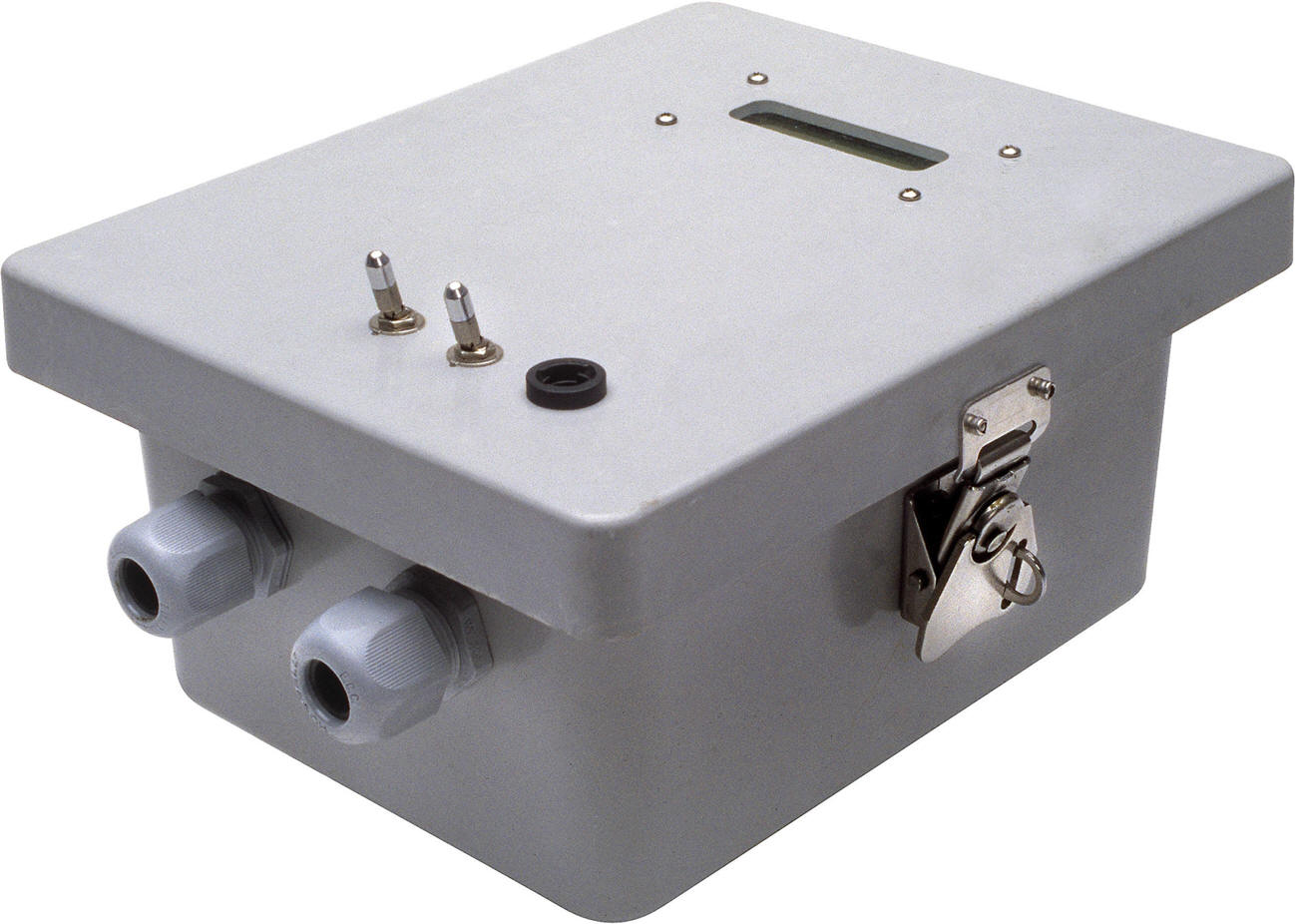

Universal Conversion Engine Enclosed
The Universal Conversion Engine is a stand-alone unit, which provides data format conversion of digital, analog, serial, step, synchro, and resolver signals. This box is factory configurable to customer requirements for easy field installation.
The BBG-2000 is a stand alone system which interfaces to several types of analog and digital inputs and outputs (I/O). An onboard microcontroller controls the processing of these signals to provide conversion to user requested outputs. An optional LCD display enables display of raw or converted data. Serial data interfaces use the standard National Marine Electronics Association(NMEA) message formats NMEA-0183 as shown below. This I/O is available in RS-232, RS-422, RS-423, RS-485, or MIL-STD-188C protocols. Standard output update rate is once per second. Custom serial data formats and frequencies are available upon request.
